3-Piece Body Design

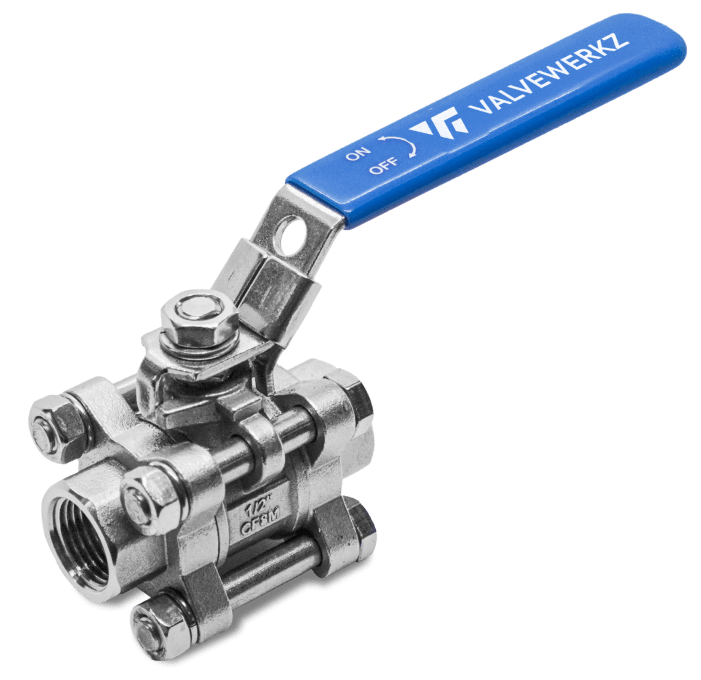

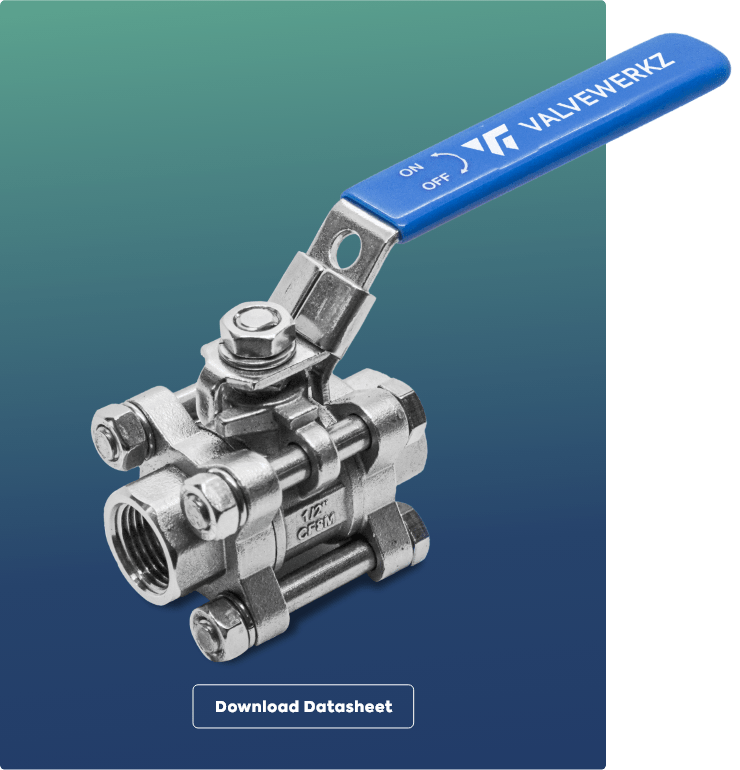

50 Series Ball Valve
Engineered for low pressure steam systems.
50 Series
The 50 Series Ball Valve is purpose-built for low pressure steam systems, featuring a rugged 3-piece body for easy maintenance and superior sealing performance.
Specifications
Design
3-Piece Body
Full Bore
Body Material
Carbon Steel
SS316
Ball Material
SS316
Seat Material
Standard Seat:
RPTFE (max. 180°C)
Seat Options:
25% Carbon filled PTFE (max. 220°C)
50% SS filled PTFE (max. 240°C)
Connection
Threaded End
Socket Weld End
Butt Weld End
Size
DN8 (¼”) to DN100 (4”)
Automation Option & Accessories
N/A
Flow Capacity
Cv = 7 to Cv = 2000
Pressure Rating
1000 WOG
Key Features
- Superior Live Loaded Packing System (V-ring Packing)
- Blowout-Proof Stem
- Dual Anti-Static Device
Performance Testing
Shell Test
Seat Test
Hydro Test
Anti-static Test
Application Versatility
Built to Perform Across Industries
Our valves are engineered to deliver consistent performance across a wide range of demanding industrial environments.
Palm oil and oleochemical lines
General manufacturing
Water and wastewater pipelines
Power plant steam isolation
Chemical and blending applications
Available Options
Enhance Your Valve Functionality
Choose from a range of accessories designed to extend performance, simplify operation, and suit specific installation needs.
