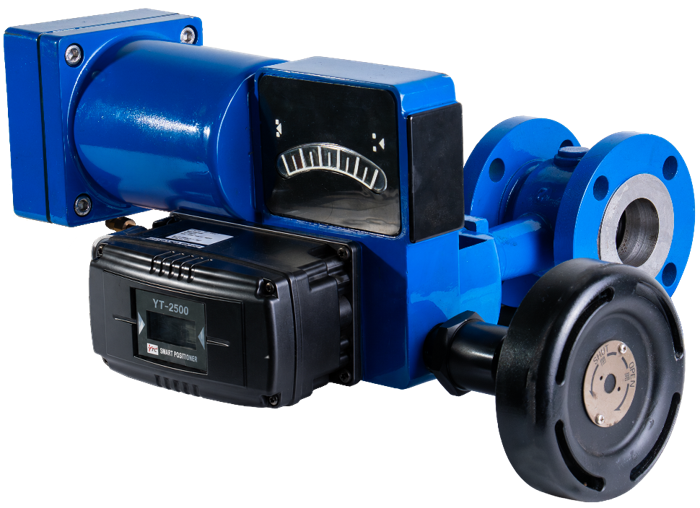

ROTARY GLOBE CONTROL VALVE
Engineered for precise throttling, stable control, and reliable shut-off.
Cấu Tạo Bên Trong Tạo Nên Sự Khác Biệt
Engineered for Industrial Flow Control
The STRAVEX Rotary Globe Control Valve is designed for process applications where control stability, leakage performance, and actuator efficiency matter.
Its eccentric plug design helps minimise wear during throttling while generating additional seating force at closure. This supports low leakage, reliable shut-off, and reduced actuator requirements in demanding industrial environments.
Suitable for chemical, metallurgical, power generation, and general industrial process control applications, this valve provides a practical solution for systems that require both precise modulation and long-term operational reliability.
Key Advantages at a Glance
- Compact and lightweight flangeless design, available up to ANSI Class 600.
- Suitable for mounting with JIS, EN, and ANSI flanges.
- Manual override comes as standard for easier site operation.
- High Cv/Kv performance, supported by the Rotary Globe design.
- Three different Cv options are available for every valve size.
- Can be changed from Normally open to Normally closed on site using standard tools.
- More cost-effective than standard linear Globe Control valves due to reduced material usage.
- Positioner mounting follows the ISO 5211 standard.
01. Integrated Body and Bonnet Construction
The one-piece cast body with integral bonnet reduces static pressure boundary joints. With only one dynamic sealing point at the shaft, the design helps minimise potential leakage paths and improve long-term reliability.
02. Eccentric Plug Geometry
The eccentric plug structure supports stable engagement between the plug and seat during operation. This helps reduce instability during throttling and improves seating performance when the valve closes.
03. High Flow Capacity
An optimised internal flow path provides high flow capacity and wide rangeability, making the valve suitable for heavy-duty industrial process control.
04. Optional Pressure Reduction Design
For applications involving higher pressure drop, a multi-hole plate can be installed inside the valve body to improve flow stability and help mitigate flashing or cavitation risks.
05. Flexible Multi-Hole Plate Options
Multi-hole plates are available in integrated internal or combined external configurations, allowing the valve to be adapted to different process requirements.
06. Options for Crystallising and Erosive Media
Heat jacket construction and erosion-resistant surface treatment are available for services involving crystallisation or abrasive fluids.
07. Simplified Maintenance
The symmetrical rotary plug design allows easier replacement of internal components and actuators without special orientation requirements.
08. Tight Shut-Off Options
Metal seat construction supports ANSI Class IV or Class V shut-off, while soft seat construction supports ANSI Class VI shut-off performance.
ROTARY GLOBE CONTROL VALVE
The Rotary Globe Control Valve is designed for industrial process systems that require precise flow control, high flow capacity, and dependable shut-off performance.

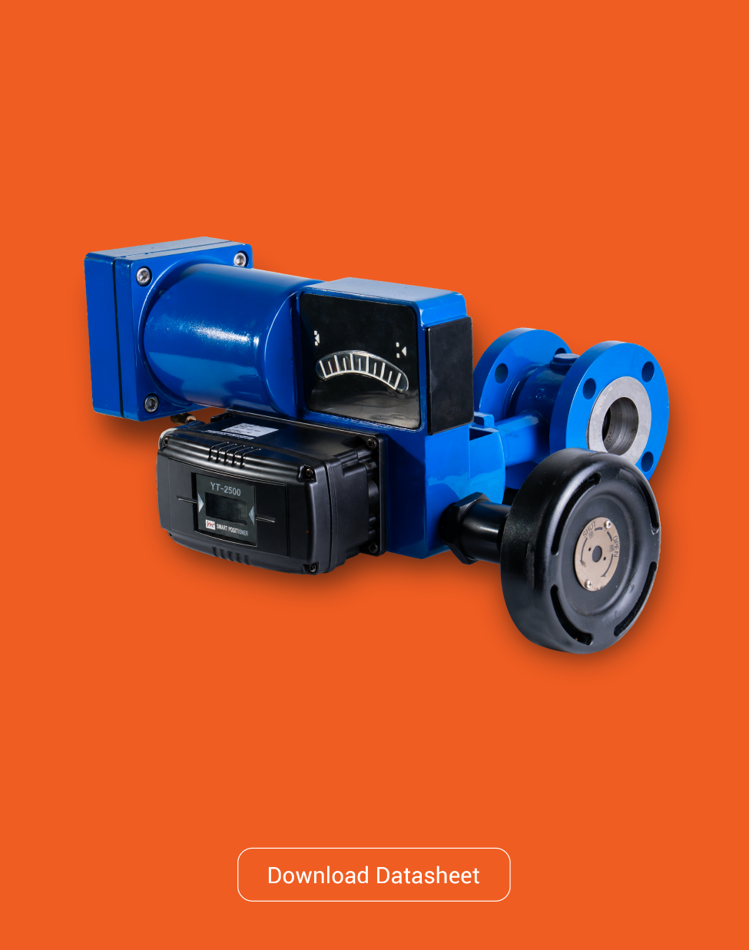

Specifications
Body Type
Standard, Jacket Type
Body Materials
WCB, SS316
Seat Type
Metal Seat, Soft Seat
Flow Characteristic
Linear, Equal Percentage
Pressure Rating
ANSI 150, ANSI 300, ANSI 600
Size Range
1”, 1½”, 2”, 3”, 4”, 6”, 8”, 10”, 12”
Rated Cv
14 to 1750
Travel
50°
Seat Leakage
ANSI B16.104 Class IV / V for metal seat, Class VI for soft seat
Working Temperature
-195°C to +400°C
Control Ratio
100:1
Actuator Options
Single Acting, Double Acting
Key Features
- Combines globe valve control performance with compact rotary valve design
- Eccentric plug geometry minimises throttling wear and improves seating force at closure
- Integrated body and bonnet construction reduces potential leakage paths
- High flow capacity with wide rangeability for heavy-duty process control
- Optional multi-hole plate helps improve flow stability and reduce pressure drop
- Available with metal seat or soft seat shut-off options
- Heat jacket construction available for crystallising media
- Erosion-resistant surface treatment available for abrasive fluid service
- Symmetrical rotary plug design simplifies maintenance and component replacement
- Compatible with single acting and double acting actuator options
Performance Testing
Hydro Test
Air Leakage Test
Đa Năng Trong Ứng Dụng
Được Thiết Kế Để Vận Hành Hiệu Quả Trong Nhiều Ngành Công Nghiệp
The Rotary Globe Control Valve is engineered for demanding industrial environments where stable throttling, reliable shut-off, and process control accuracy are required.
Dây chuyền dầu cọ và oleochemical
Sản xuất công nghiệp nói chung
Đường ống nước và nước thải
Cách ly hơi tại nhà máy điện
Ứng dụng hóa chất và pha trộn
Tùy Chọn Có Sẵn
Nâng Cao Chức Năng Vận Hành Của Van
Lựa chọn từ đa dạng phụ kiện được thiết kế nhằm tăng hiệu suất, đơn giản hóa thao tác vận hành và phù hợp với các yêu cầu lắp đặt cụ thể.
